individual Barn puerta – Angled Slat Design (Estilo 7)
Bring architectural elegance y modern craftsmanship into your home con the Maderra puerta granero Collection. Each puerta is handcrafted from 1.5″ engineered MDF, delivering exceptional strength, stability, y a smooth Pintura-grade Acabado worthy of high-end interiors.
Every Maderra puerta granero is built to order y custom-sized for a perfect fit. Whether you’re dividing rooms, enhancing privacy, or adding a statement design feature, our barn puertas combine style y performance con effortless operation.
Each unit includes a Negro powder-coated track system con a soft-close mechanism, ensuring smooth, quiet movement y long-lasting durability. Our wide range of designer patterns — from clean geometric lines to bold modern motifs — make these puertas as visually stunning as they are functional.
For best coverage, Maderra recommends sizing your puerta 1–2 inches wider on each side y at least 1 inch taller than the rough opening.
Please note: Handles shown in product images are for display purposes only y are not included con your order.
Product Especificaciones
Material: 1.5″ thick engineered MDF – smooth, stable, Pintura-grade core
Acabado Options: Painted grade (Color personalizado matching available)
Included Hardware:
Negro powder-coated corredizo track system
Matching hangers, rollers, y brackets
Integrated soft-close mechanism
All required mounting hardware y fasteners
Handles: Not included (shown for display only)
puerta Size Range: Custom-built to order
Maximum size per puerta: 48″ wide × 96″ tall
Recommended puerta Overlap:
1–2″ overlap on each side of rough opening
Minimum 1″ clearance above opening for top overlap
Track Acabado: Matte Negro (included)
Mounting Type: de muroed rail system
Operation: corredizo puerta system con concealed soft-close feature
Instalación: Ready to install – includes full mounting kit y instructions
Envío: Ships fully assembled y prefinished for immediate Instalación
Applications: Ideal for pantries, bedrooms, living rooms, offices, y closets
Design Highlights
Exclusive Maderra designer panel patterns available in multiple styles
Handcrafted precision con furniture-grade painted Acabado
Smooth y silent corredizo motion con integrated soft-close hardware
Custom-built Dimensiones ensure a perfect fit for your project
Crafted in the USA con attention to detail y premium Materiales

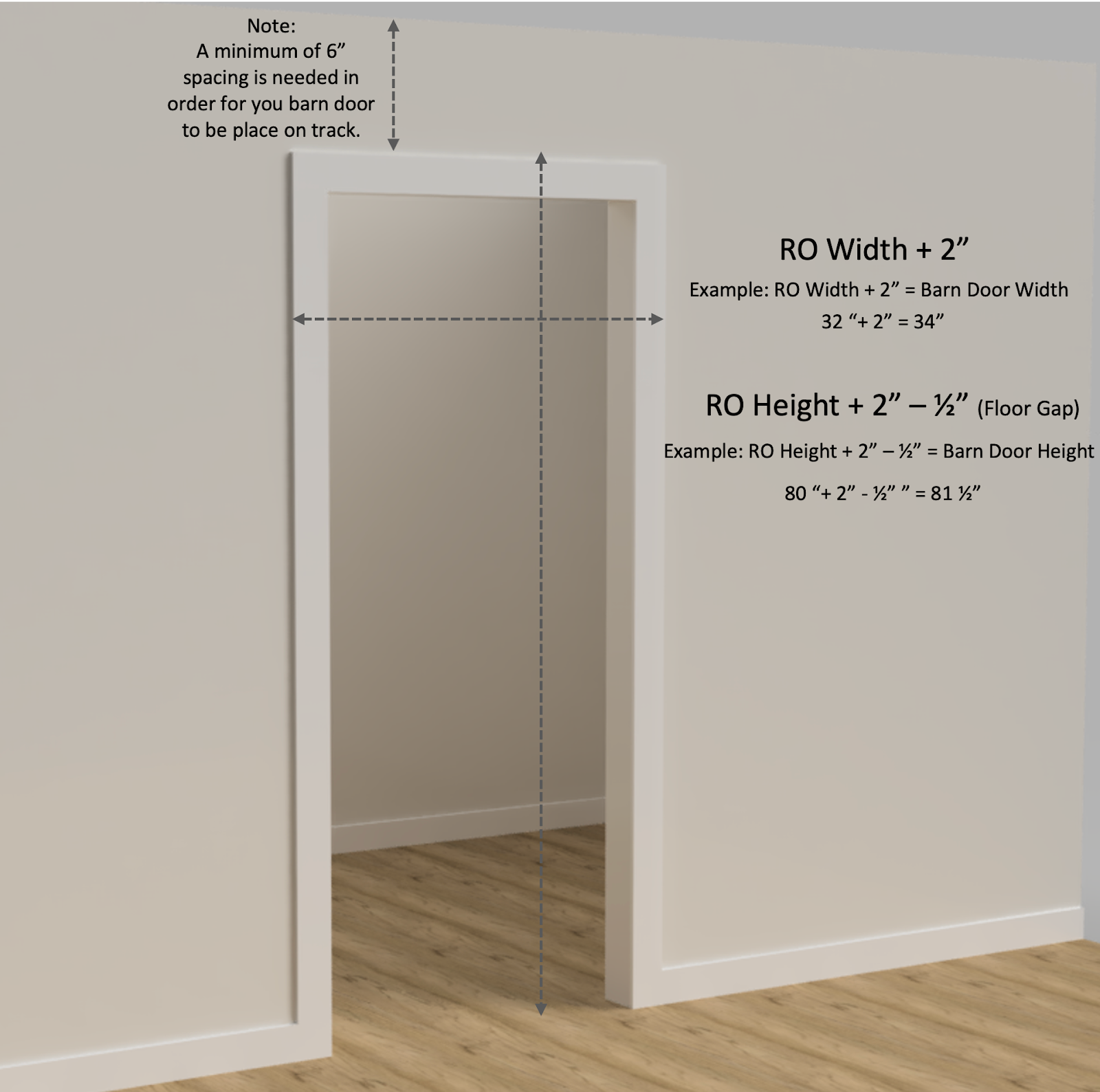

How to measure your puerta properly:
The puerta granero you choose needs to be slightly larger than your existing puerta opening, so it covers the entryway. If your doorway doesn't have a trim, measure the width of the inside of your puerta frame from izquierda to derecha. Add at least 1” or 2" inches to this measurement.
If your doorway does have a trim, measure the width of the puerta frame from one edge of the trim to the other. Again, add at least 1” or 2” inches.
To measure the height of your puerta, you will need to measure from the floor to the top of your puerta frame. Add at least 1” or 2” to this measurement. If you have a puerta casing, you will need to measure to the top edge of your puerta casing. Once you have the final high of your puerta granero, subtract.5” to allow the barn to have the proper floor clearance.
Información de envío y cronograma de producción
Todos los pedidos se envían mediante transportistas de carga externos con los siguientes servicios incluidos:
Entrega con plataforma elevadora para una descarga segura y eficiente
Cita de entrega coordinada directamente por el transportista
Firma requerida al momento de la entrega
Inspección al momento de la entrega
Customers have a 15–20 minute window to inspect their shipment upon arrival.
Si se observa algún daño importante, debe quedar claramente anotado en el Bill of Lading (BOL) antes de firmar y antes de que el conductor se retire. Si ocurre algún daño, esta documentación es necesaria para poder presentar un reclamo por daño de carga ante el transportista.
Cajones de gran tamaño
Los cajones que superen 96 pulgadas de alto pueden requerir ayuda adicional durante la descarga debido a limitaciones de tamaño del transporte. El cliente debe asegurarse de contar con la ayuda o el equipo adecuado al momento de la entrega. Si se requiere ayuda o herramientas adicionales, como montacargas o asistencia de izaje, deben ser coordinadas por el cliente a su propio costo. Si el transportista no puede entregar directamente en tu dirección por limitaciones de tamaño o acceso, serás responsable de retirar el envío en la terminal de carga más cercana a tu propio costo. Para evitar complicaciones de entrega o costos adicionales, recomendamos contactarnos antes de comprar para confirmar la factibilidad de entrega en tu zona.
Cómo enviamos
Cada pedido se embala como una unidad única y segura para un traslado protegido.

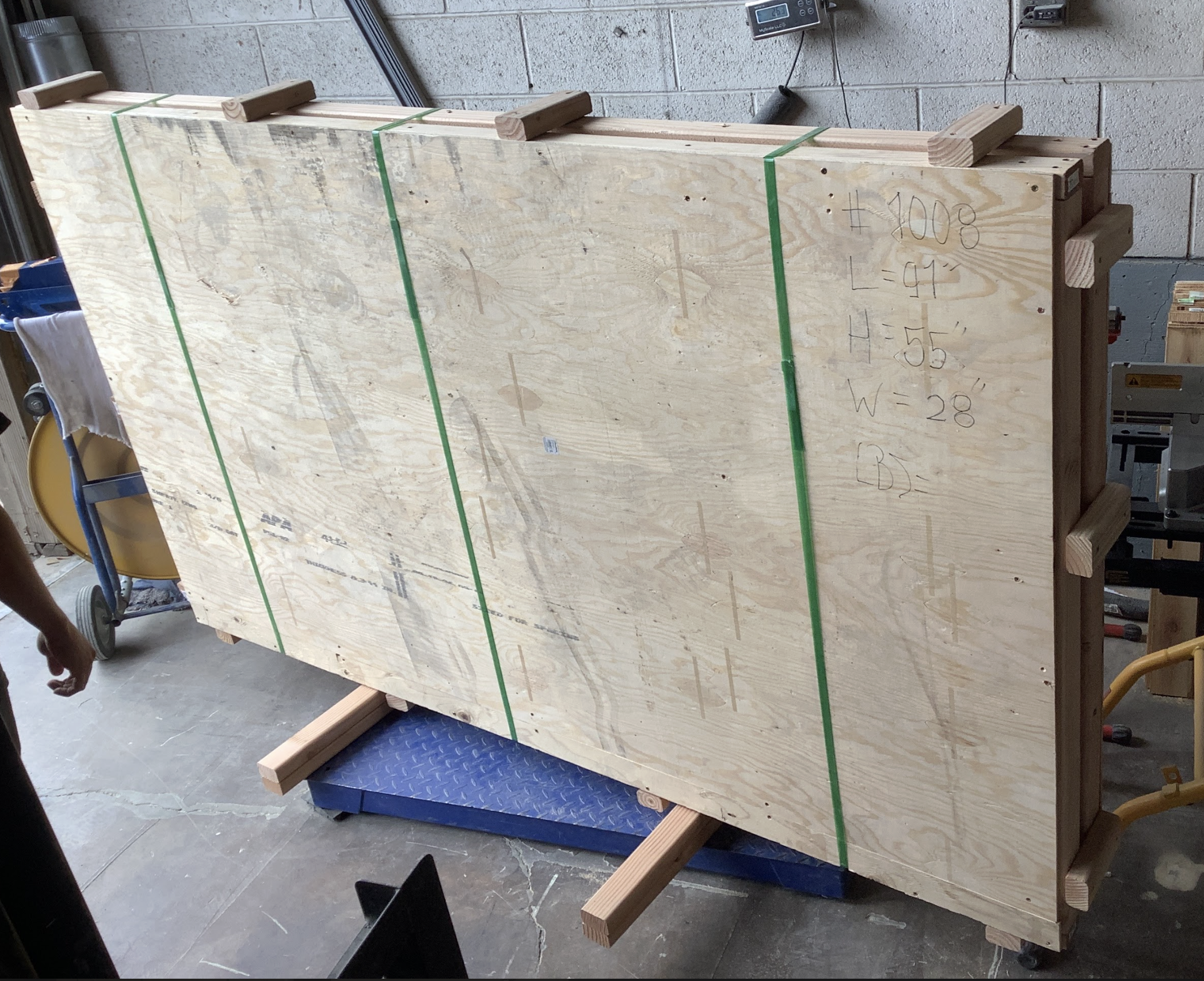

Encajonado y paletizado: Los productos se envían completamente protegidos en un cajón de madera terciada a medida o envueltos sobre pallet con espuma, protectores de esquinas/bordes y flejes de alta resistencia (as shown).
Protegido individualmente: Cada componente se envuelve y amortigua antes de cerrar el embalaje final.
Preparado según estándares de carga: Usamos materiales y métodos estándar de la industria para evitar movimiento e impactos durante el transporte.
Maderra documenta tu proyecto con fotos durante la producción y el embalaje. Before it leaves our warehouse, we send final images of the completed product y the sealed crate, providing clear proof of condition prior to shipment.
Production Time
Our production time can range anywhere from 4-6 weeks from the time the order is placed. Our lead times may extend con customization or supply constraints. Rush orders order options are available y targets a production time frame of 2-3 weeks window. Rush Capacity is limited.
Cancellations
All Maderra products are custom-made y become non-refundable after 24 hours of order placement. Orders canceled within the first 24 hours must be submitted in writing to 📧 customersupport@maderrashop.com for a full refund.
For full details on delivery responsibilities, damage reporting, y cancellation policies, please review our [Terms y Conditions].
con the purchase of your product, Maderra will provide email assembly y Instrucciones de instalación once your order ships.We also offer complimentary video-call assistance for additional support during setup. To schedule a live video session, you may call or text (801) 518-0394.
